• New

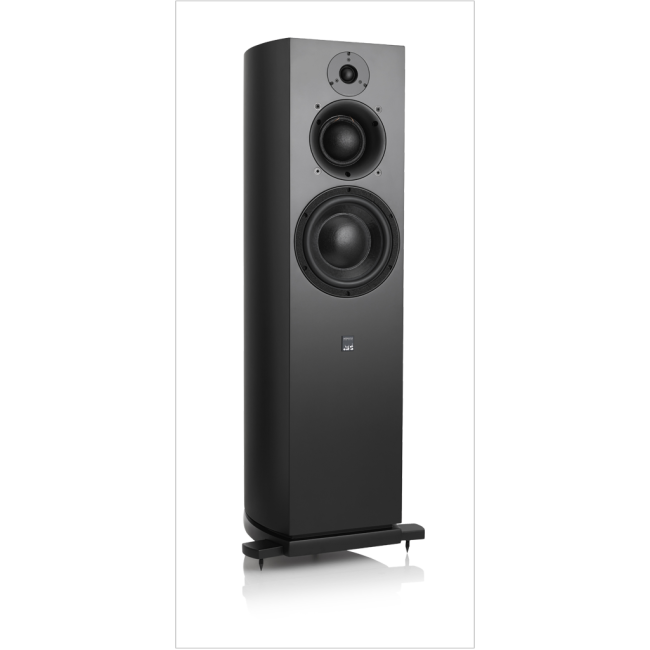

SCM40 Satin Black
ATC

SCM40 Satin Black

Reference:
€5,600.00
Tax included

SCM40

Overview

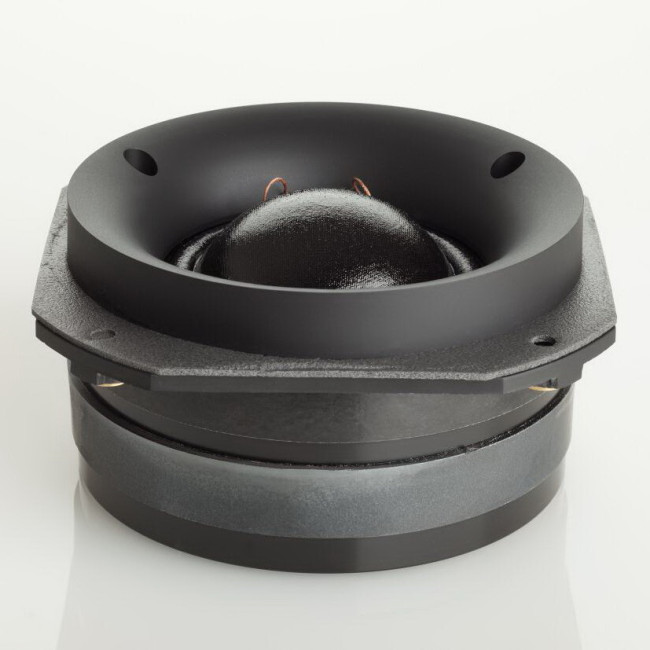

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

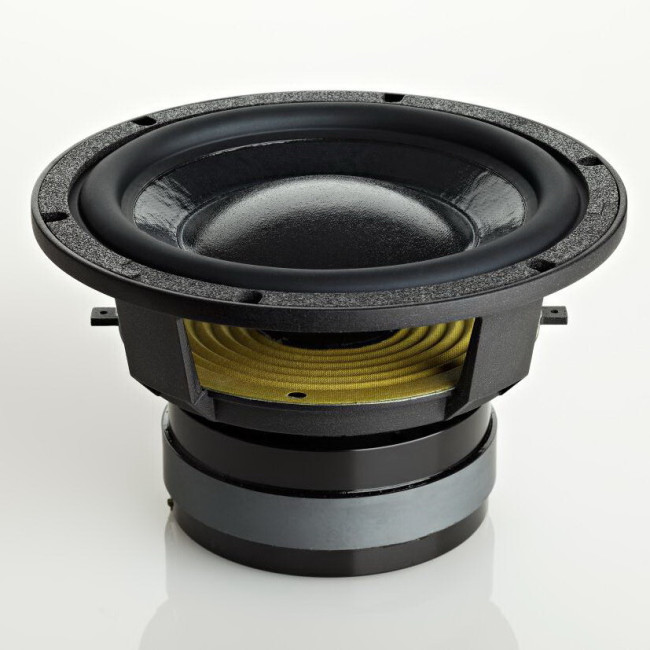

ATC 164mm bass driver.

Massive optimised motor assembly.

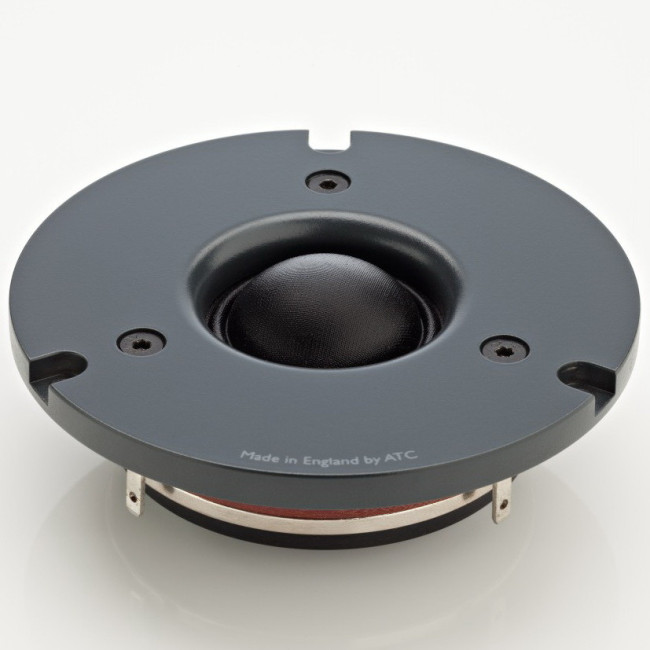

ATC Soft Dome mid-range driver.

Flat impedance curve allowing easy load for amplifiers.

Veneered Finish Options – Cherry, Black Ash.

Painted Finish Options – Satin Black, Satin White.

6 year warranty.

“Given a serious source and recording the new ATC SCM40 is superb – I know of no price rivals that give this level of accuracy, speed and insight…it’s capable of a level of transparency you normally only expect from loudspeakers at three or four times its price.”  Hi-Fi Choice, October 2014

Quantity

Add to favorites Add to compare


Payment Options



Shipping Options

Drivers: HF ATC 25mm Neodymium, Mid 75mm ATC Soft Dome, LF ATC 164mm SC

Matched Response: ±0.5dB

Frequency Response (-6dB): 48Hz-22kHz

Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

Sensitivity: 85dB @ 1W @ 1metre

Max SPL: 112dB

Recommended Power Amplifier: 75 to 300 Watts

Nominal Impedance: 8 Ohm

Crossover Frequencies: 380Hz & 3.5kHz

Connectors: Binding Posts/4mm Plugs, tri-wire

Dimensions (HxWxD): 980 x 370 x 305mm / 38.58 x 14.56 x 12.01″ (inc. foot plinth, spikes add 25mm to height, grill adds 34mm to depth)

Weight: 31kg

Spikes: 4 per cabinet, M8 x 1.25mm
