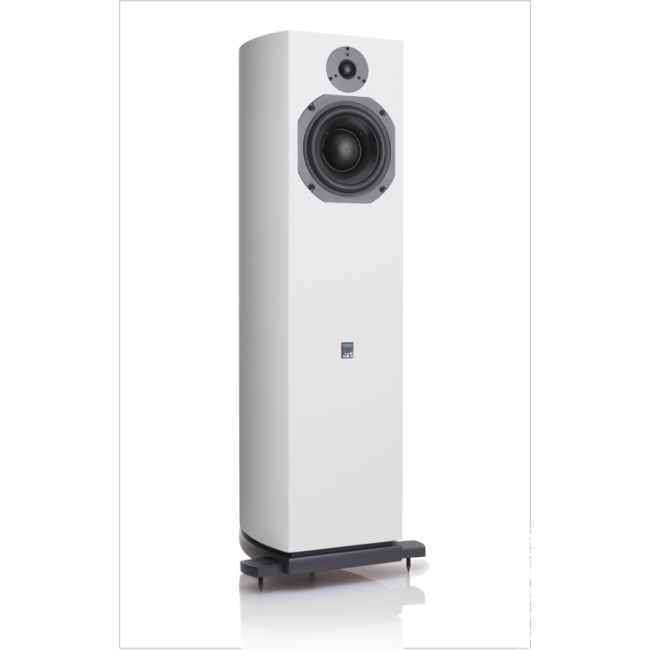

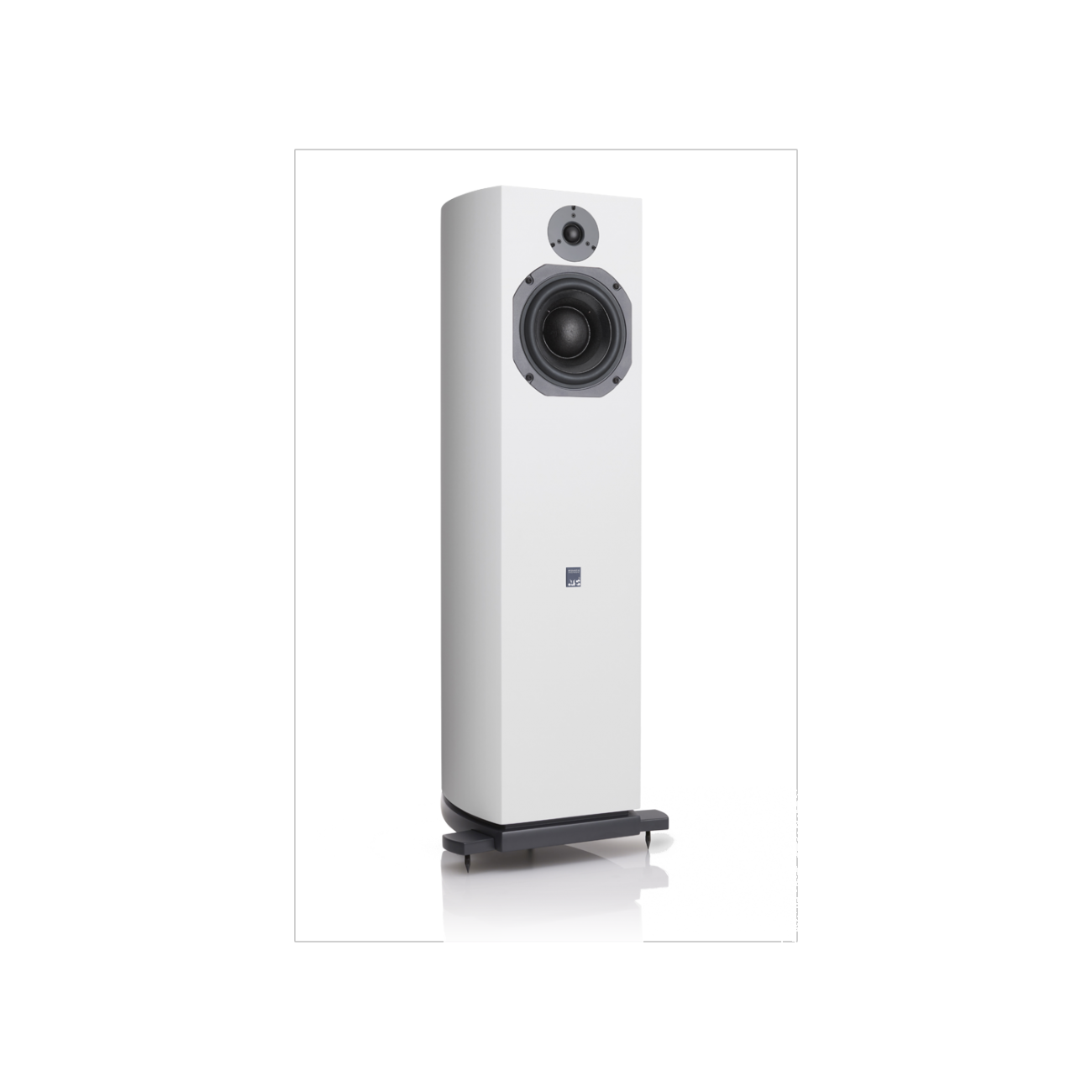

SCM19A Satin White
    ATC

    SCM19A Satin White

    Reference:
    €6,700.00
    Tax included

    SCM19A

    Overview

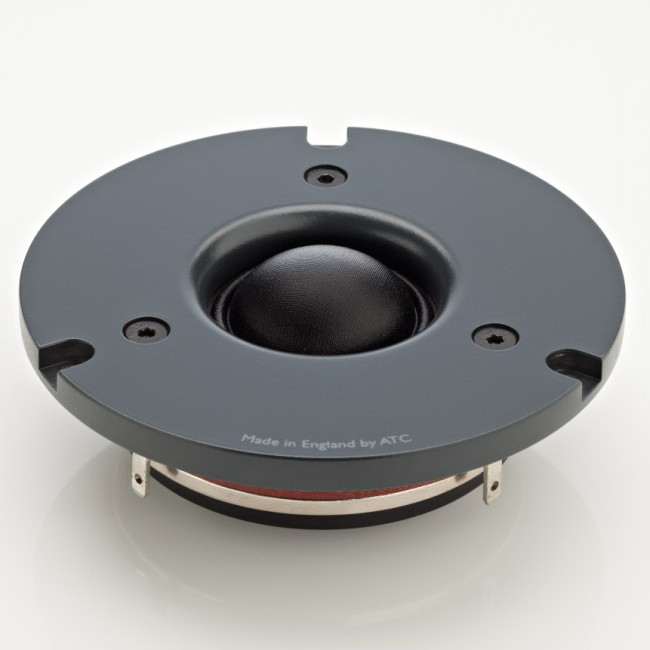

    New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.

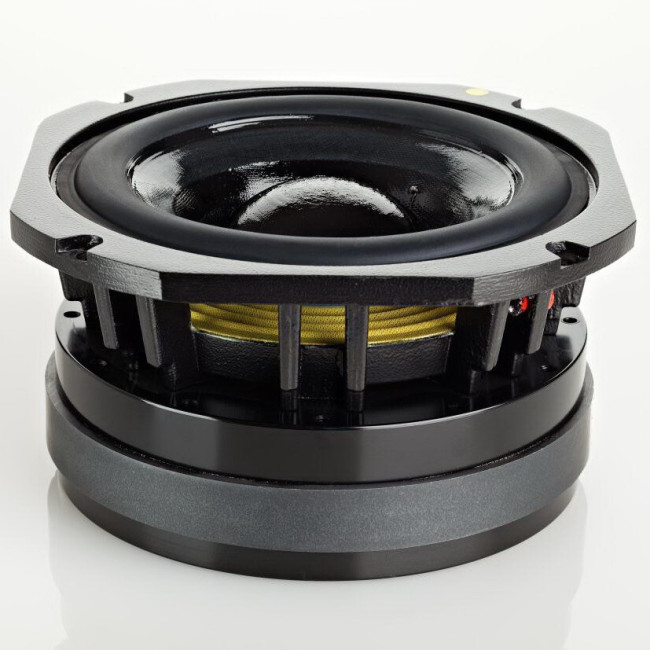

    “SL” spec bass driver with 75mm integral Soft Dome.

    9kg optimised short-coil/long gap motor assembly.

    On-board grounded source 182 watt Class A/B Bi-amplifier.

    Active crossover filters and overload protection.

    Veneered Finish Options – Cherry, Black Ash.

    Painted Finish Options – Satin Black, Satin White.

    6 year warranty.

    Quantity

    Add to favorites Add to compare


    Payment Options



    Shipping Options

    Drivers: HF ATC 25mm dual suspension Tweeter, Mid/LF ATC 150mm SL

    Matched Response: +/- 0.5dB

    Frequency Response (-6dB): 54Hz-22kHz

    Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

    Max SPL: 108dB

    Crossover Frequency: 2.5kHz

    Input Connector: Female XLR

    Input sensitivity: 1V

    Filters: 2nd Order critically damped with phase compensation

    Overload Protection: Active FET momentary gain reduction

    Amplifier Output: 150W LF, 32W HF

    Dimensions (HxWxD): 980 x 370 x 344mm / 38.58 x 14.56 x 13.54″ (inc. foot plinth & amp, spikes add 25mm to height, grill adds 34mm to depth)

    Weight: 31kg

    Spikes: 4 per cabinet, M8 x 1.25mm

    Product Details
