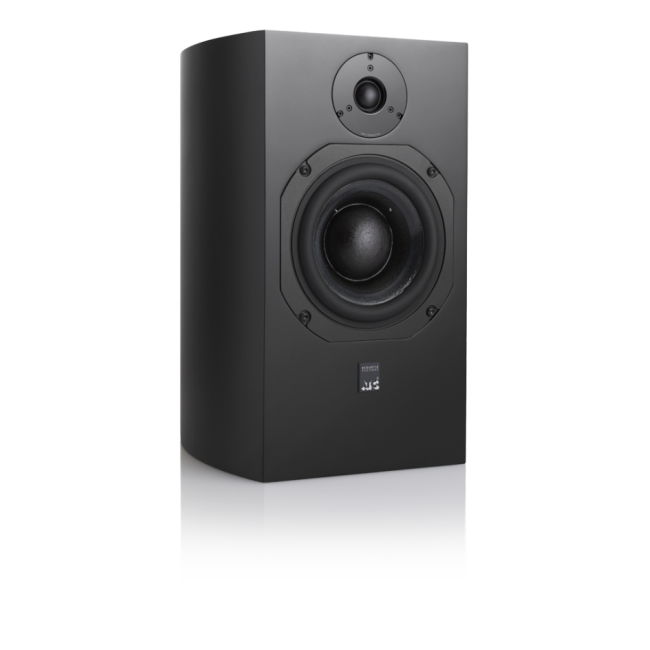

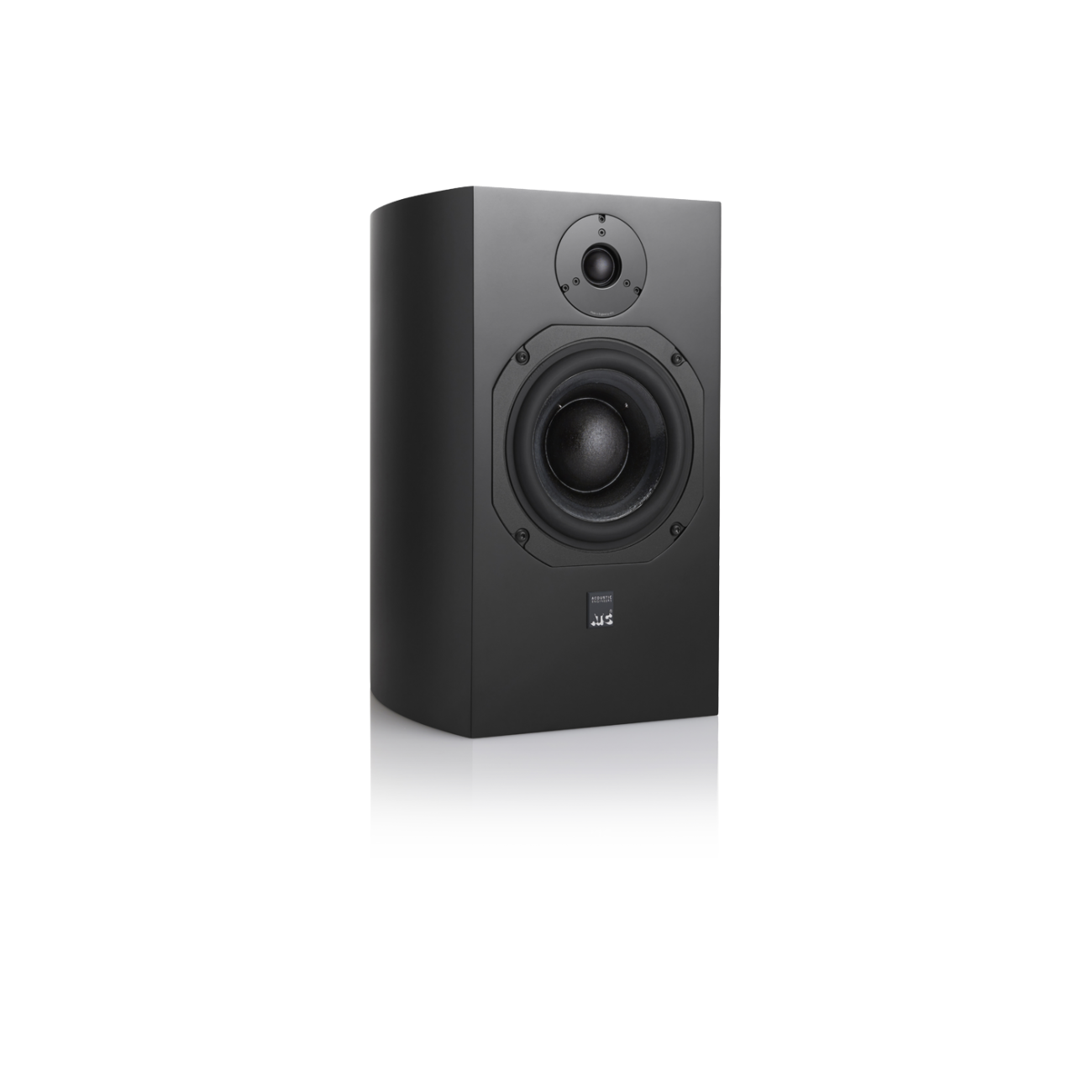

SCM19 Satin Black
    ATC

    SCM19 Satin Black

    Reference:
    €3,600.00
    Tax included

    SCM19

    Overview

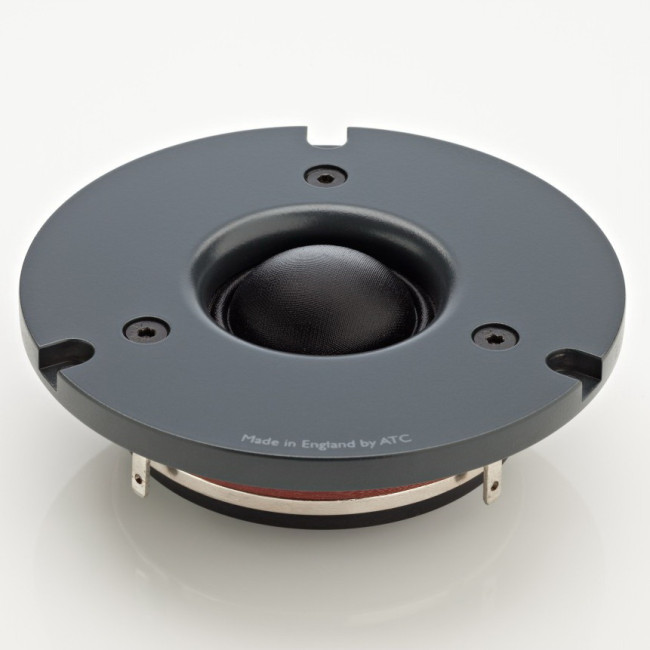

    New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

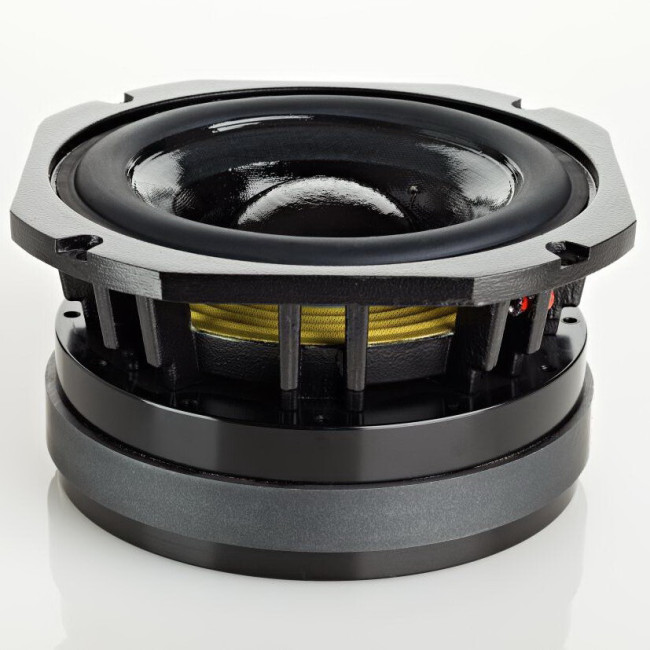

    “SL” spec bass driver with 75mm integral soft dome.

    9kg optimised short-coil/long gap motor assembly.

    In-house, hand-wound precision flat wire coil.

    Flat impedance curve allowing easy load for amplifiers.

    Veneered Finish Options – Cherry, Black Ash.

    Painted Finish Options – Satin Black, Satin White.

    6 year warranty.

    “Superlative clarity; excellent phase coherence; sublime bass.”  Hi-Fi Choice Magazine, September 2014

    Quantity

    Add to favorites Add to compare


    Payment Options



    Shipping Options

    Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm SL

    Matched Response: ±0.5dB

    Frequency Response (-6dB): 54Hz-22kHz

    Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

    Sensitivity: 85dB @ 1W @ 1metre

    Max SPL: 108dB

    Recommended Power Amplifier: 75 to 300 Watts

    Nominal Impedance: 8 Ohm

    Crossover Frequency: 2.5kHz

    Connectors: Binding Posts/4mm Plugs, bi-wire

    Cabinet Dimensions (HxWxD): 438 x 265 x 300mm / 17.24 x 10.43 x 11.81″ (grill adds 34mm to depth)

    Weight: 17.8kg
