• New

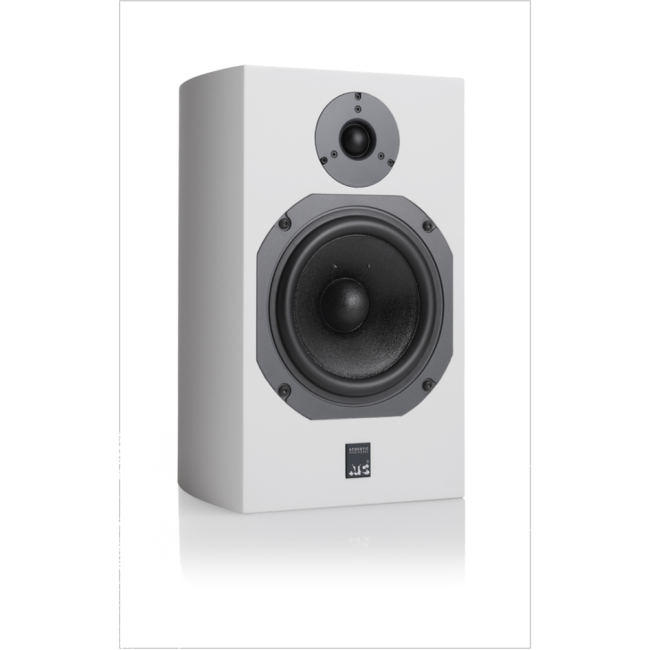

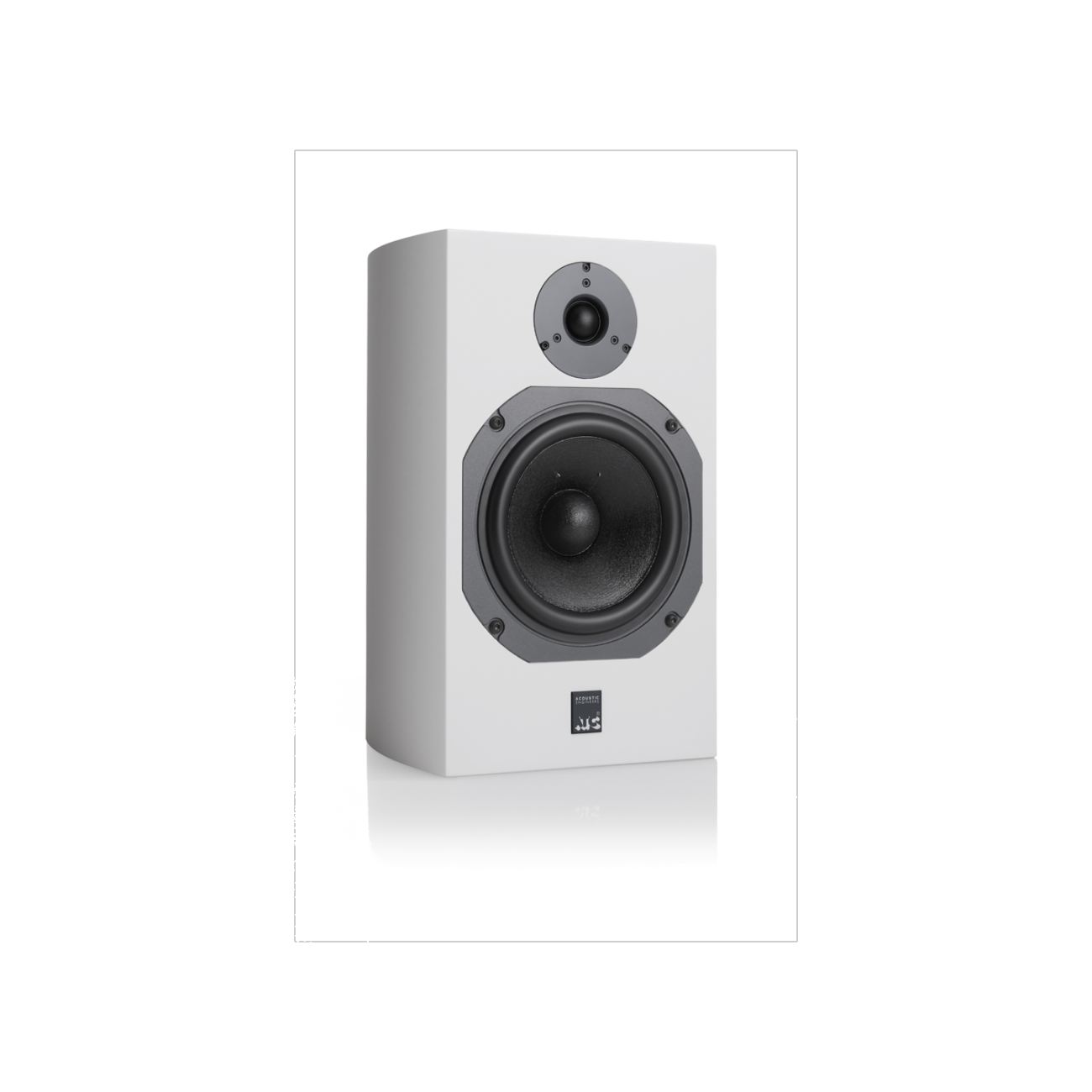

SCM11 Satin White
ATC

SCM11 Satin White

Reference:
€2,300.00
Tax included

SCM11

Overview

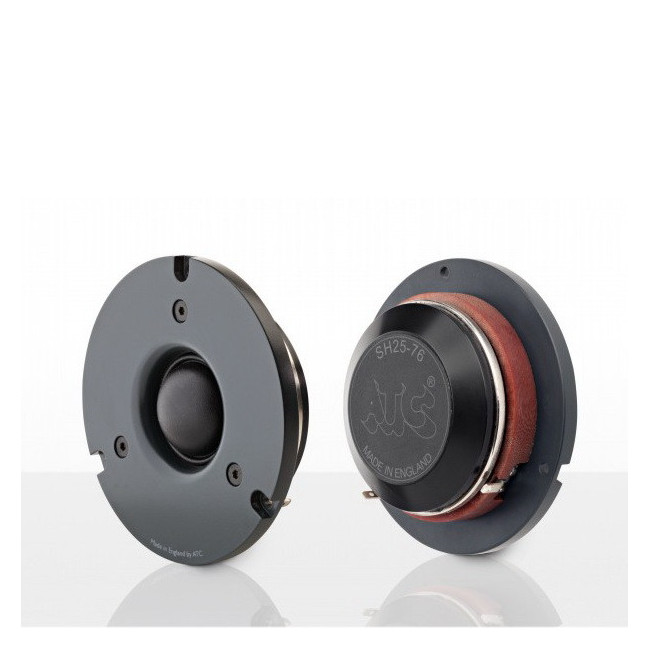

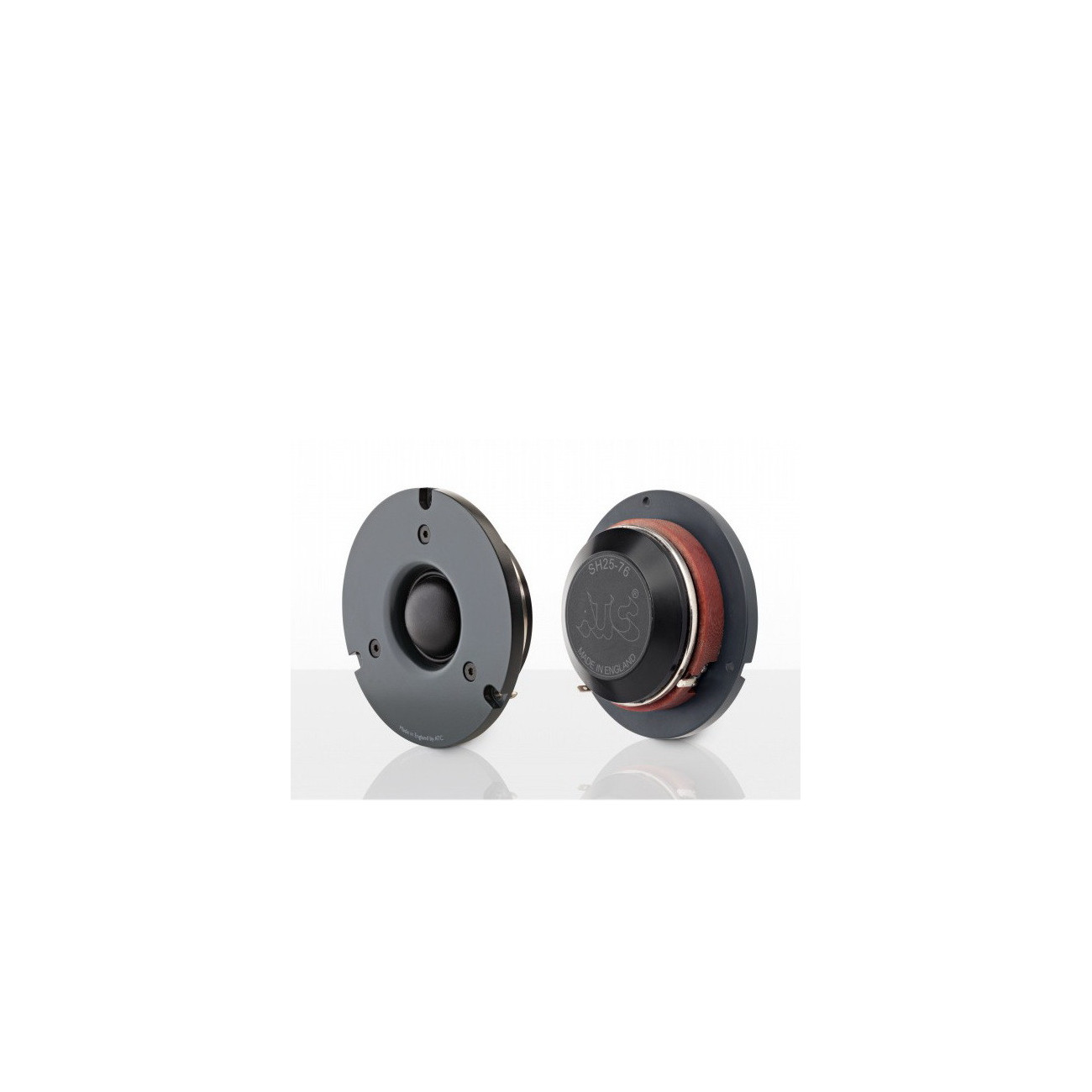

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

Precision undercut bass pole.

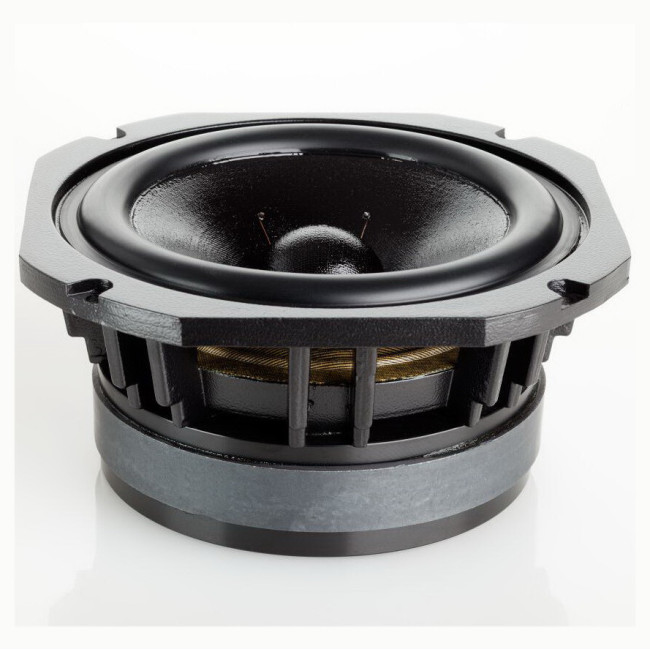

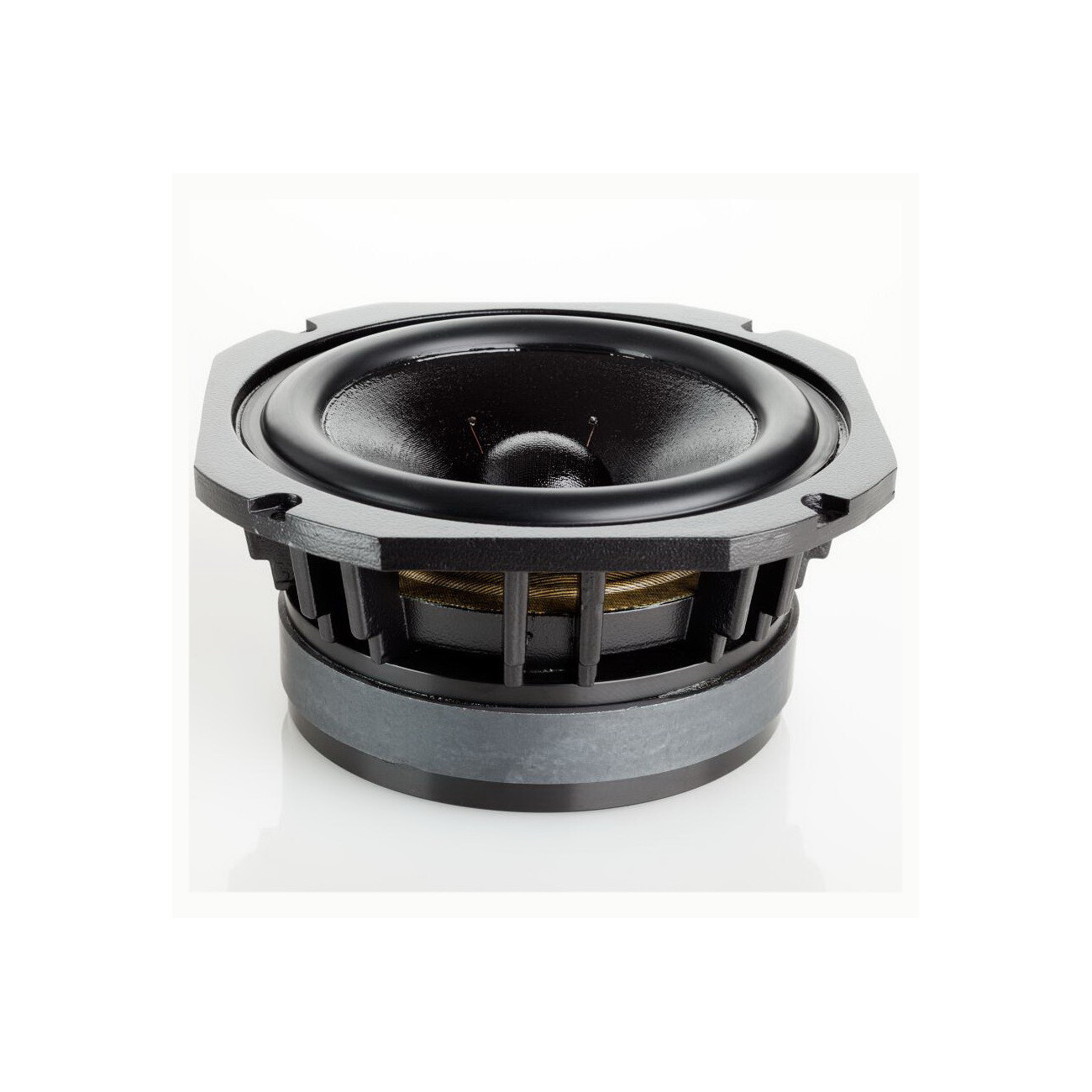

“CLD” driver technology with 45mm integral soft dome.

In-house, hand-wound precision flat wire coil.

Massive optimised motor assembly.

Flat impedance curve allowing easy load for amplifiers.

Veneered Finish Options – Cherry, Black Ash.

Painted Finish Options – Satin Black, Satin White.

6 year warranty.

Quantity

Add to favorites Add to compare


Payment Options



Shipping Options

Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm CLD

Matched Response: ±0.5dB

Frequency Response (-6dB): 56Hz-22kHz

Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

Sensitivity: 85dB @ 1W @ 1metre

Max SPL: 108dB

Recommended Power Amplifier:  75 to 300 Watts

Nominal Impedance: 8 Ohm

Crossover Frequency: 2.2kHz

Connectors: Binding Posts/4mm Plugs, bi-wire

Cabinet Dimensions (HxWxD): 381 x 232 x 236mm / 15.00 x 9.21 x 8.46″ (grill adds 28mm depth)

Weight: 10.9kg

Product Details
