• New

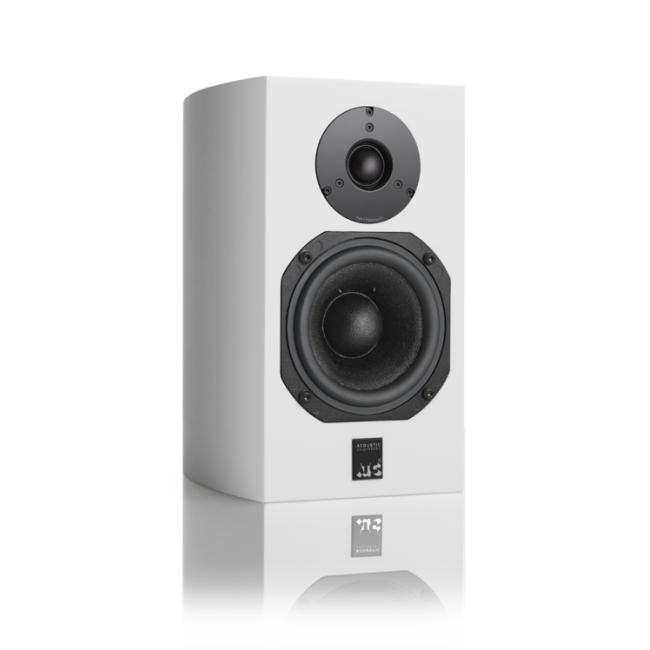

SCM7 v3 Satin White
ATC

SCM7 v3 Satin White

Reference:
€1,500.00
Tax included

SCM7

Overview

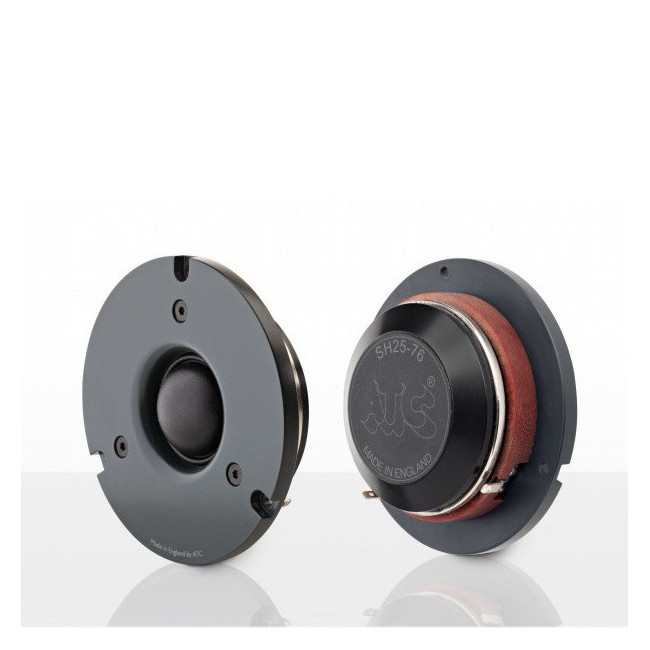

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

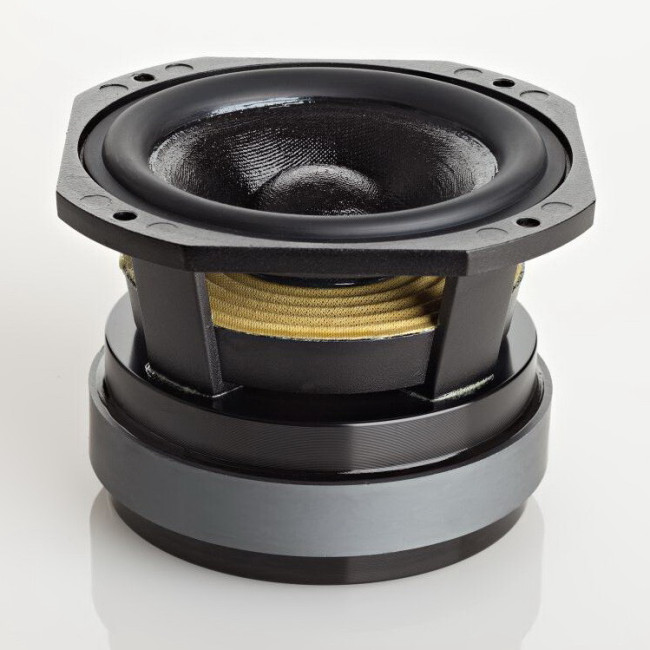

125mm ATC mid-bass unit with integral soft dome.

In-house, hand-wound  ribbon wire mid-bass voicecoil.

Massive optimised mid-bass motor assembly.

Flat impedance curve allowing easy load for amplifiers.

Veneered Finish Options – Cherry, Black Ash.

Painted Finish Options – Satin Black, Satin White.

6 year warranty.

“…you will be amazed at its rhythmic and dynamic alacrity.”  Hi-Fi Choice, May 2014. Group test winner!

Quantity

Add to favorites Add to compare


Payment Options



Shipping Options

Drivers: HF ATC 25mm Neodymium Soft Dome, Mid/LF ATC 125mm SC

Matched Response: ±0.5dB

Frequency Response (-6dB): 60Hz-22kHz

Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

Sensitivity: 84dB @ 1W @ 1metre

Max SPL: 103dB

Recommended Power Amplifier: 75 to 300 Watts

Nominal Impedance: 8 Ohm

Crossover Frequency: 2.5kHz

Connectors: Binding Posts/4mm Plugs, bi-wire

Cabinet Dimensions (HxWxD): 300 x 174 x 215mm / 11.81 x 6.85 x 8.46″ (grill adds 28mm depth)

Weight: 7.5kg
