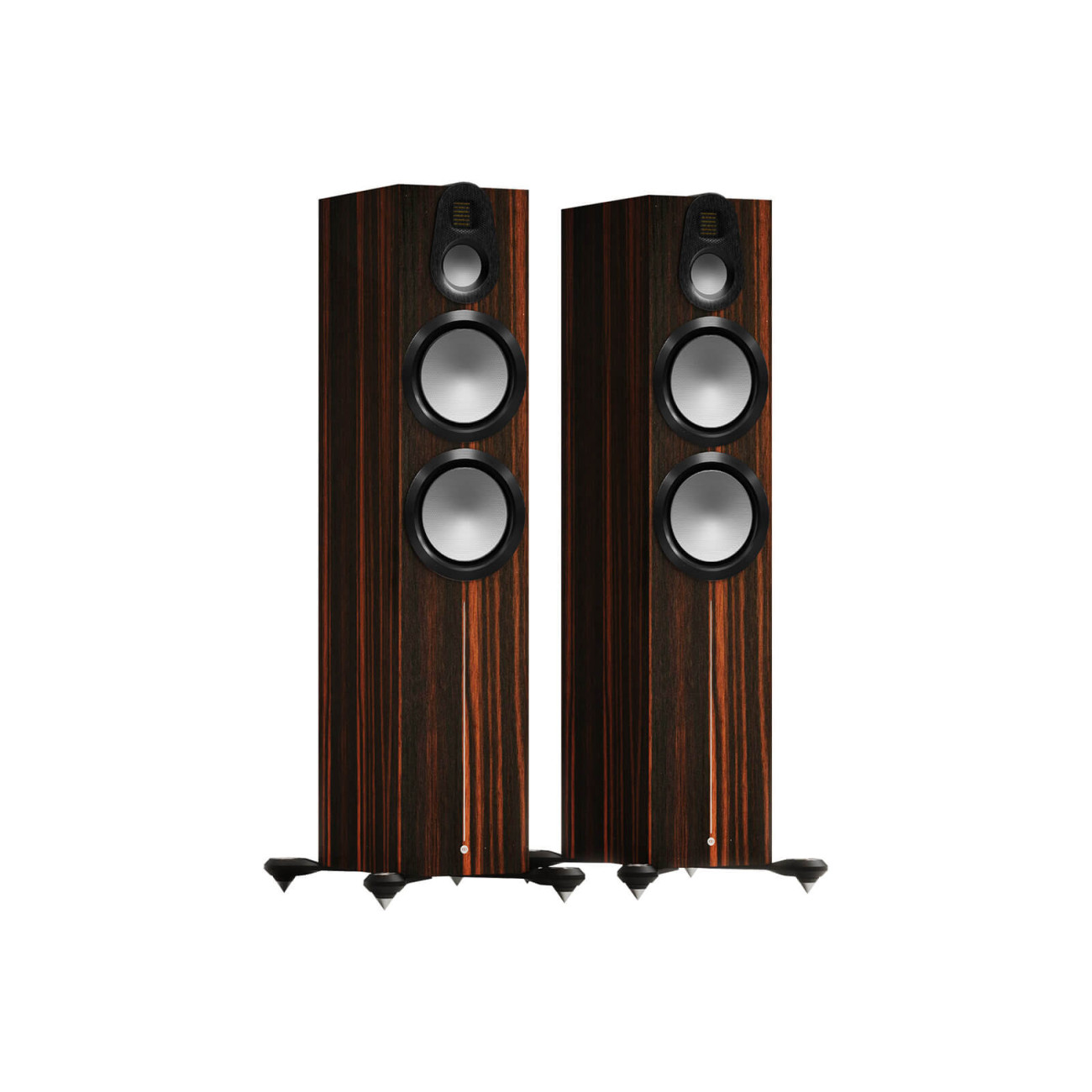

Gold 500 6G Macassar Wood Veneer
Gold 500 6G
The Gold 500 6G is the flagship model of the new Gold Series 6G. It represents the highest-levels of performance and system design at the price point, and within this competitive market segment. Designed to house the latest MPD III high-frequency transducer alongside the new 3-inch mid-driver and powerful twin 8-inch bass drivers, each of which benefit from the latest HDT, C-CAM cone technology and hugely powerful motor systems. The Gold 500 6G is a worthy flagship for such a prestigious range; a formidable acoustic treat for the ears as well as the eyes.
The flagship Gold 500 6G is engineered to deliver the very highest levels of performance. It features the latest MPD III high-frequency transducer alongside an HDT, C-CAM 3-inch mid-driver and twin 8-inch bass drivers.
Payment Options
Shipping Options
Key Features
Three-way design
1 x MPD III high-frequency transducer
1 x 3-inch mid-driver featuring HDT, C-CAM cone technology
Steel mid-pod enclosure with die-cast aluminium baffle
2 x 8-inch bass drivers featuring HDT, C-CAM cone technology
New crossover design utilising carefully selected high-quality capacitors
Ported cabinet design using HiVe II port technology and through-bolt technology
All-new cast aluminium outriggers and plinth/spike assembly featuring a new steel plate for greater structural integrity and improved stability
Finishes available: Macassar wood veneer, High-Gloss Black and Satin White
Individual driver ‘Magnetic grilles’ included
Specifications
System Format
3-way
Sensitivity (2.83v @ 1m, Free-Field)
88.5 dB
Sensitivity (2.83v @ 1m, Installed)
N/A
Recommended Amplifier Power (RMS into 4 Ohm, Music Signal)
130 – 600 W
Continuous Power Handling (CTA 426-B)
300 W
Nominal Impedance
4 Ohms
Minimum Impedance (20Hz to 20kHz)
4 Ohms @ 150 Hz
Drive Unit Complement
2 x 8” (203 mm) HDT C-CAM Bass Drivers
1 x 3” (76 mm) HDT C-CAM Mid-Range Driver
1 x MPD III Tweeter
Frequency Response Free-Field (-6dB)
44 Hz – 60 kHz
Frequency Response, In-Room (-6dB)
25 Hz – 60 kHz
Maximum Peak SPL (AES75, Z-weighted)
122 dB
Bass Alignment
HiVe II Ported
Port Tuning Frequency
33 Hz
Crossover Frequency
LF/MF: 700 Hz
MF/HF: 2.6 kHz
External Dimensions with all accessories fitted (H x W x D)
1155 x 383 x 475 mm (451/2 x 151/16 x 1811/16”)
Weight (each)
26.5 kg (58 lb 7 oz)
Sold As
Pair
