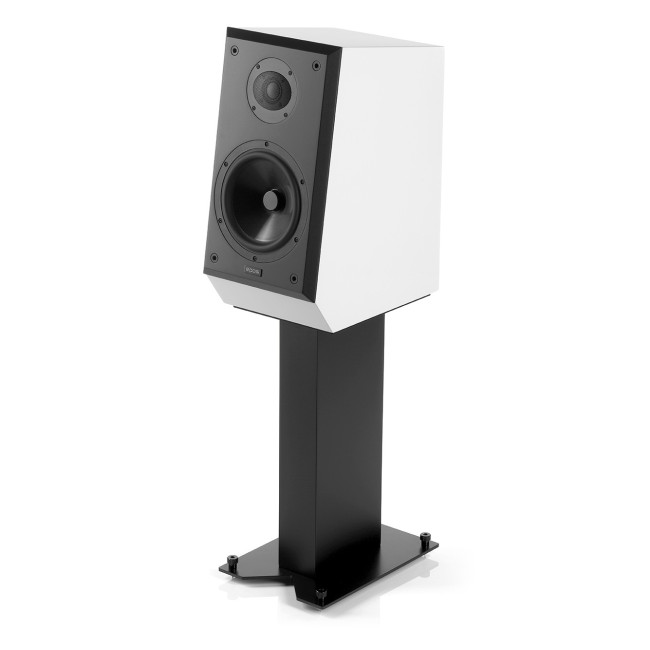

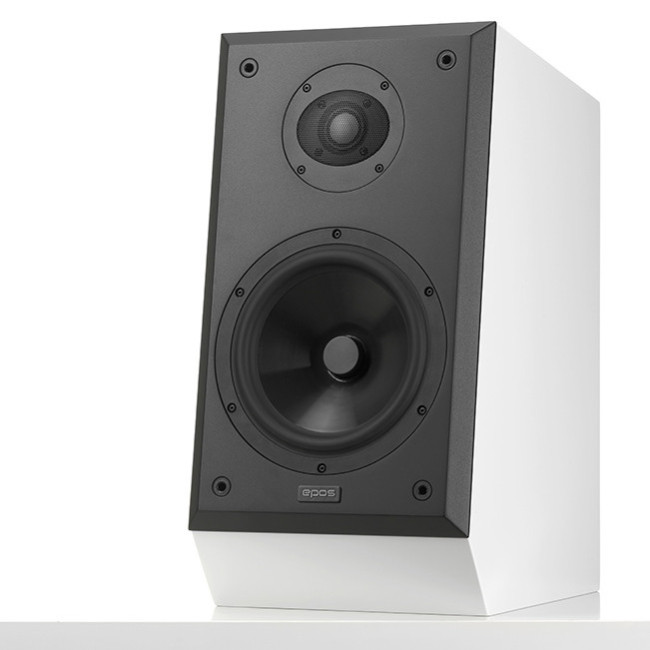

ES-14N white
    Epos

    ES-14N white

    Reference:
    €3,999.00
    Tax included

    BACK TO THE FUTURE.

    A classic speaker returns to the future.

    Frequency Response: 40Hz – 23kHz (-6dB) 33Hz – 25kHz (-10dB)

    Average Impedance: > 6 Ohm

    Minimum Impedance: 4.3 Ohm @ 160Hz

    Sensitivity: 87dB @oe2.823V / 1m

    Distortion: 0.2% THD @ 1W

    Crossover Frequency: 2700 Hz

    Bass Unit: High Power 7“, 35 mm voice coil diameter, Hybrid Ferrite and Neodymium magnet, injection molded cone with variable thickness and Mica filling. Low hysteresis rubber surround.

    HF Unit: 28 mm tweeter with Aluminum/Ceramic compound dome and no Ferrofluid

    Dimensions: 491 x 250 x 385 mm (HWD)

    Stand: recommended height 515 mm

    Weight: 16 kg without stand

    Finish: Walnut, White semi matte, Black semi matte

    Quantity

    Add to favorites Add to compare


    Payment Options



    Shipping Options

    Marty McFly: “YOUR KIDS ARE GONNA LOVE IT!”

    Restarting EPOS could only mean re-creating the most famous model, the ES-14. This was a 2-way speaker in a fairly big cabinet and classic looking cabinet, to be used on a dedicated stand. The design should be classic, not lifestyle, only doing things that help with the sound and as straight forward as possible.

    Analyzing the old construction was interesting. It used a 7“ woofer with Polypropylene cone and an underhang coil with a huge magnet, but multiple layers of VC winding to make the whole coil heavy in order to get a sort of roll-off in the response curve of the woofer. The size of the woofer was not following any standard – too big for a 6.5“, but too small for an 8“. But it was a clever choice, because you could get more drive at lower frequencies more like an 8“ and a midband character closer to the 6.5“.
