FEATURES

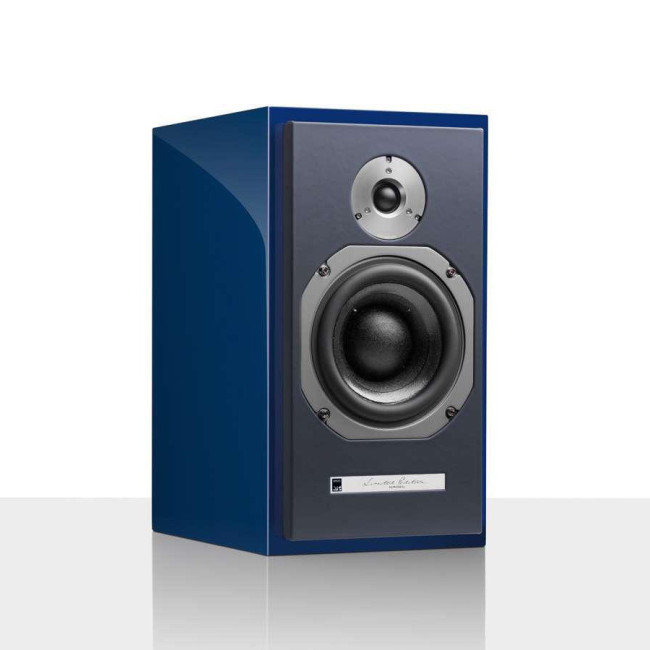

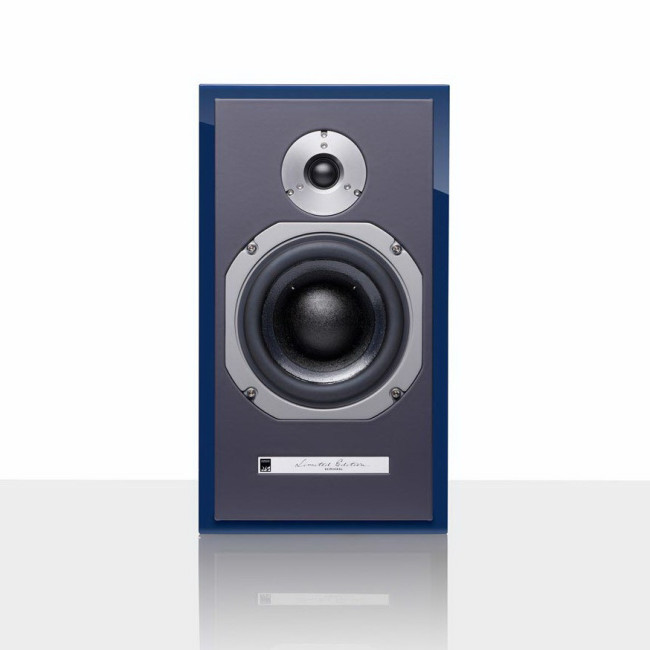

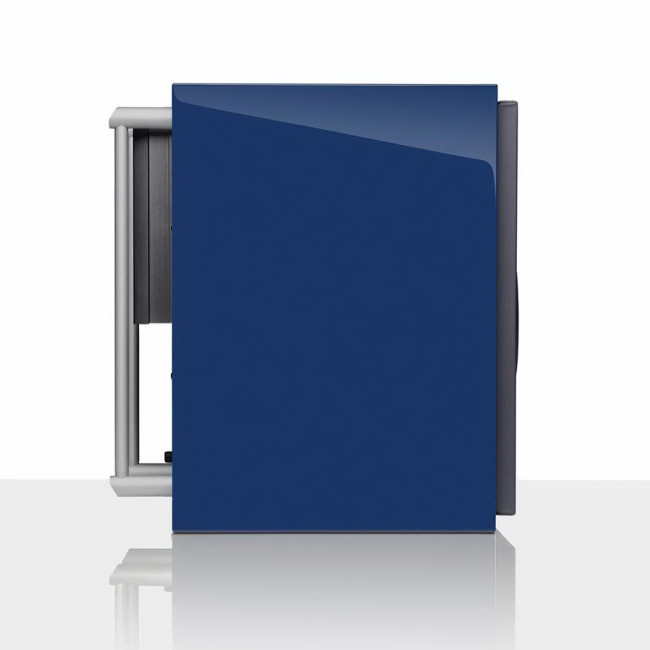

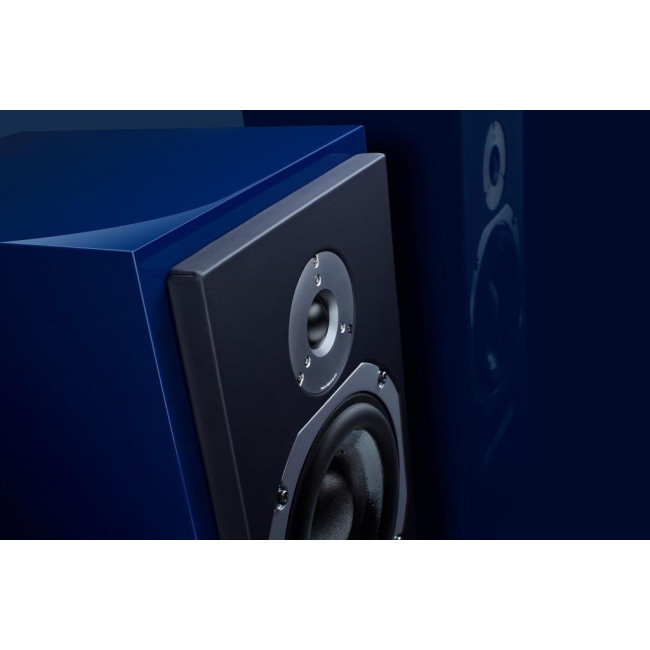

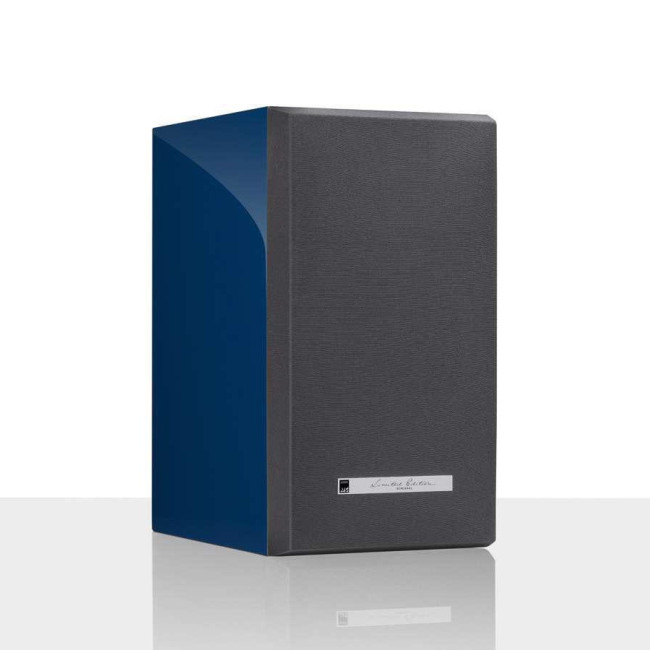

COMPACT SEALED CABINET FINISHED IN HIGH-GLOSS BLUE WITH LEATHER
UPHOLSTERED BAFFLE

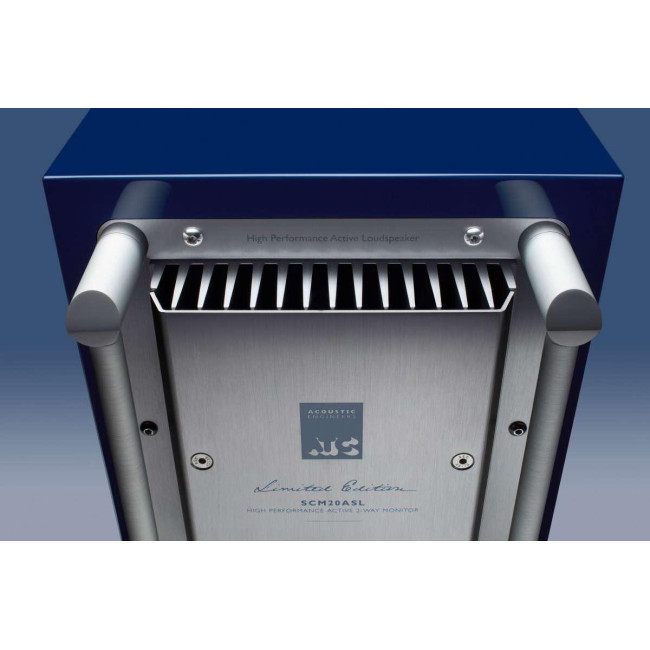

ATC ON-BOARD ACTIVE 250W 'AMP PACK' MODULE
2ND ORDER LINKWITZ-RILEY ACTIVE CROSSOVERS
2 X CLASS A/B MOSFET AMPLIFIERS, 200W BASS/MID & 50W HIGH FREQUENCY
USER ADJUSTABLE INPUT SENSITIVITY & BASS CUT/LIFT CONTROLS
MATCHING SUBWOOFER — C4 SUB MK2 LE — AVAILABLE FOR EXTEND BASS RESPONSE
HAND-BUILT IN ENGLAND
6 YEAR WARRANTY
ACOUSTIC SPECIFICATIONS
Bass/mid driver: 1 x 150mm/6”, SB75-150SL 8Ω
High Frequency Driver: 1 x 25mm/1”, SH25-76S 6Ω
Low Frequency Cut-off: 55Hz (-6dB, anechoic)
High Frequency Cut-off: 25kHz (-6dB)
Crossover Point: 2.2kHz
MaxSPL: 108dB continuous, 114dB peak (per pair, IEC Weighted Pink Noise, 1m, anechoic).
Sensitivity: +4dBu rev 95dBC (Bass Boost 0dB, Input Sensitivity 1V, Pink noise).
ELECTRONIC SPECIFICATIONS

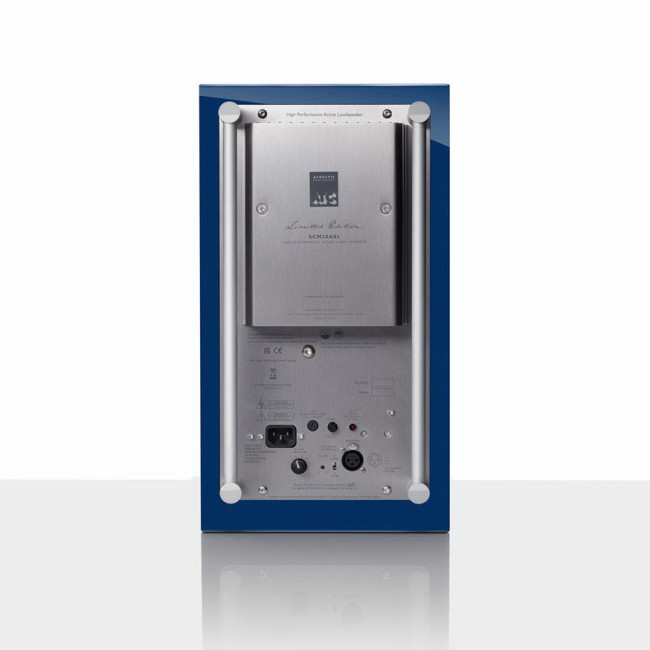

Balanced Input: 1 x Rear Panel Mounted Female XLR, pin 2 hot
Input Impedance: 20kΩ (dif ferential)
Input CMRR: >60dB at (10kHz)
Input Sensitivity: 2.2dBu/1Vrms for full power
Input Sensitivity Control: -6dB switchable, -6dB variable. Total adjustment 2.2dBu/1Vrms to 14.2dBu/4Vrms
Bass Shelf: -2dB to +3dB, switchable in 1dB steps
Crossover Filters: 2nd Order Linkwitz Riley
Amplifier type: Grounded Source MOSFET, class A /B, convection cooled
Output Power: Bass 200W (8Ω), H.F. 50W (8Ω)
THD+N: <0.0017%/-95dB (1kHz, 1dB below rated power, 90kHz BW)
Frequency Response: <2Hz to >200kHz (-3dB)
Limiter: ATC Active FET Momentary Gain Reduction
Electronic amp protection: Amplifier d.c. of fset and over-temperature (both indicated by rear panel LED)
Mains Input: 220-230V or 115V, factory set. Please observe panel markings and labels!
Power Consumption: Idle 26W/41VA. 1/8 Power 116W/116VA. Full Power 312W/398VA
Heat Output: Idle 89BTU/hr, 1/8 Power 311BTU/hr, Full Power 382BTU/hr
PHYSICAL SPECIFICATIONS
Net Weight: 27kgs/59.5lbs
Dimensions: HxWxD 450x250x425mm 17 11/16” x 9 13/16” x 14 3/16”
